Offering Title

Overmoulded full colour LE

like me

Offering type

PROTOTYPE

Level 1 class

Level 2 class

Level 3 sub

Defaulf value test

Organization name

Organization/department description

Offering contact email

sami.ihme@vtt.fi

Delete recover test

Field of Application

Technology

Offering Category

Offering Reports

Target customers / applications

Applied technology

Offering Description

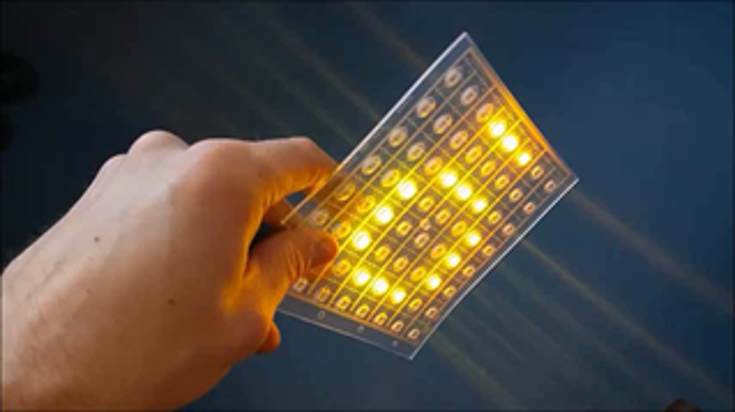

Customized fully controllable LED matrix display, signage and lighting module. The flexible elements can be connected to create large area systems. Current TRL level: TRL6

Offering specifications

The control IC is integrated in each LED
Full colour and intensity control of 64 LEDs
Setting each LED as you wish to scroll text messages, other images.
Backplane foil
Screen printed Ag conductive traces on PET.
64 LED chip (5mm x 5mm) bonded using ICA.
Injection molding process
Injection molded using thermoplastic material.
Diffusive lens structure to reduce LEDhot spots.
Operating voltage: 3-5 V
Max. current consumption: 1-2 A
Overall dimensions: 15 cm x 15 cm x 2 cm.
Weight: 50 grams

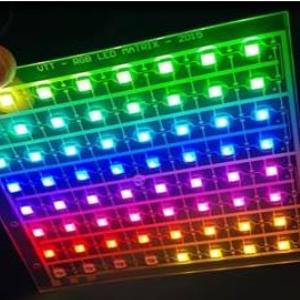

Image 2

Image 3
